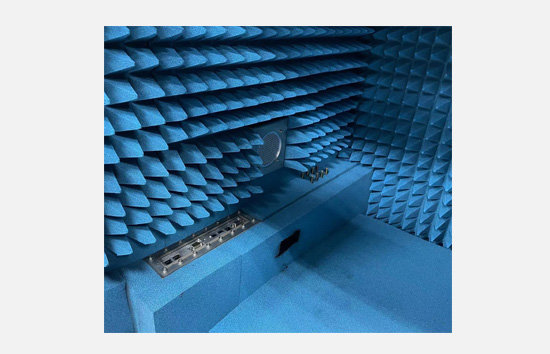

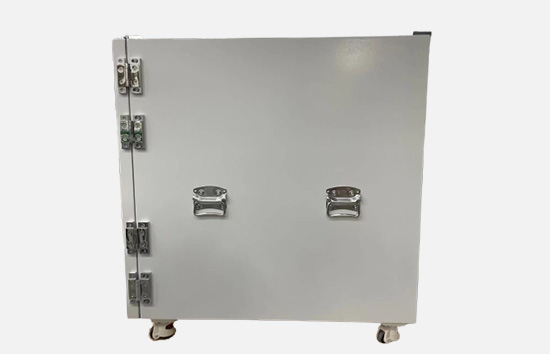

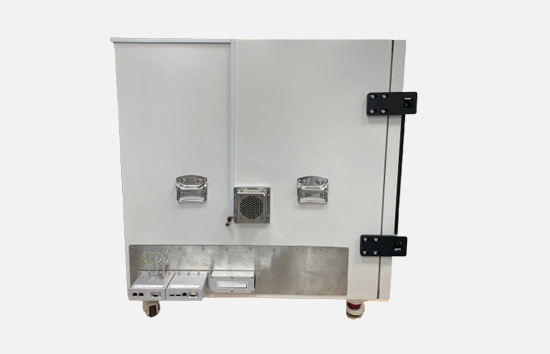

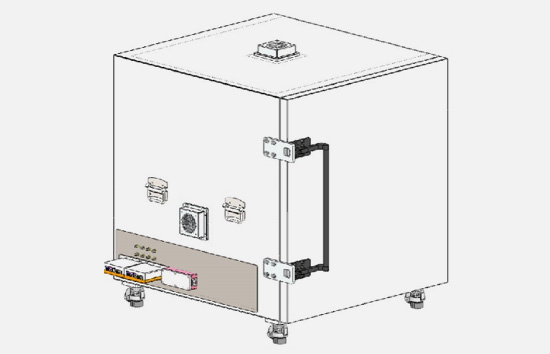

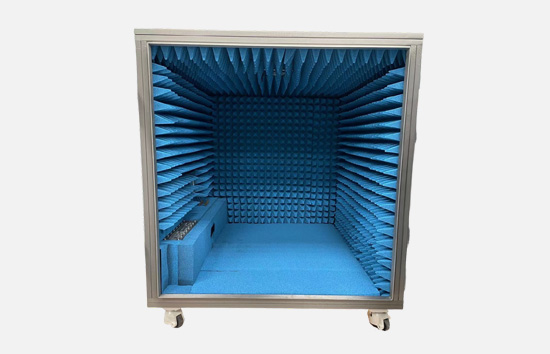

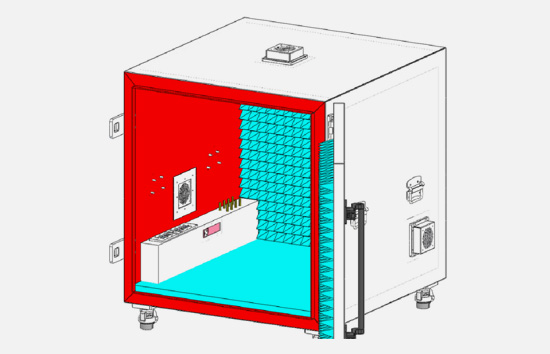

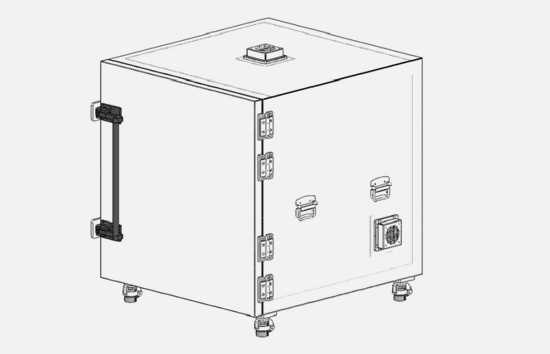

859085 Manual Shielding Box (100dB)
  • Introduction
  • Parameter
  • Download
  • Video
  • Shielding box, made by metal, is a common test equipment for preventing the leakage of electromagnetic wave outwards or inwards.

    Comparing to the large-volume shielding rooms, which are common in the labs, shielding boxes are more welcome on the production floors due to small volume.

    Shielding boxes are widely used in the test of different communication standards: WiFi, LTE, Bluetooth, GSM, CDMA, WCDMA, WiMAX, RFID, Zigbee, etc. It is common for the board-level or assembly test of mobile phones, wireless access points, wireless routers, Bluetooth headsets, car remotes, walkie-talkie, TPMS, etc.

  •  Exterior Dimension(WxDxH)  830x900x850 mm  Interior Dimension(WxDxH)  620x670 x715 mm
     Material  Electrogalvanized sheet   Door operating  Manual
     Metal Finishing  Paint
     Operation Life (Open&Close)  1,000,000 times
     Frequency Range  1GHz – 7.2GHz  Operation Temperature  0℃ - +80℃
     Isolation(with filters)  72.4GHz & 7.2GHz ≥100dB  Filter numbers  2
     RF Connectors  SMA x 6  Weight (with absorber)  40kg
